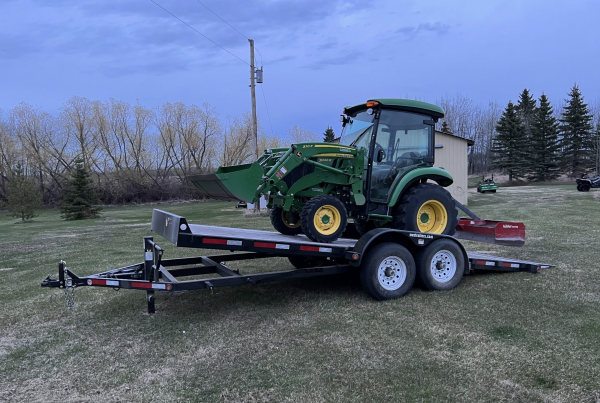

2023 SWS 20ft Full Tilt Trailer w/Cushion Cylinder, 14000# GVWR -TAX IN & OUT THE DOOR PRICE


Category: Tag:



  • New 20ft Full Tilt Trailer w/(2) 7k TORSION Axles (14,000# GVWR), Fir Deck, Polar Flex Wiring, Military Grade Paint, ***Torsion axles are the better choice for tilt trailers so both axles/all tires are on the ground while loading equipment. With spring axles the front tire lifts and all weight is on rear axle. 11 Year warranty on torsion axles.

    -$16,888.00 TAX IN & OUT THE DOOR
    -Personal & Commercial Financing Available
    -Affordable Delivery Options available!

    -New 20ft Full Tilt Trailer by SWS Trailers
    -2-7,000LB EZ Lube Torsion axles w/electric brakes.
    -14,000 GVWR
    -ST 235/80/16″ 10 ply tires on 8 bolt white rims
    -2 5/16″ Coupler
    -Safety Chains
    -Electric Breakaway Kit
    -12K Drop Leg Spring Loaded Jack
    -Stake Pockets
    -20′ Usable Load Deck
    -83″ Wide Between Fenders
    -4″ tubing , Main Frame; Deck Frame
    -3″ Channel Cross Members 16″ Center
    -Removable Teardrop Fenders
    -Heavy wall 5” Tube Main frame
    -3” Tube sub frame w/channel cross members
    -24” Steel tread plate approach
    -2” x 8” Fir Plank Deck
    -2 ½” x 8” Cushion Tilt cylinder
    -Industry Leading Lippert 11 YEAR TORSION Axle Warranty: Lippert components, 61 years in the industry! -Modular sealed wiring harness with Polar Flex Wiring that can handle temperatures as low as -65! Made for our Canadian Weather
    -Hentzen Military grade paint: Trailer is acid washed, then painted with (2) coats of Hentzen Paint, 2 part primer + Poly Eurethane -Fir Decking, more durable than pine
