Tube Main Frame Construction for ultimate strength and durability.
Fully Welded Frames
16” O/C Frame – 2” x 6” Steel Tube
16” O/C Sidewalls – 1” x 1-1/4” Steel Tube
24” O/C Roof Bows – 1” x 1-1/4” Semi Crown Tube
Aluminum Tread Plate on Vnose

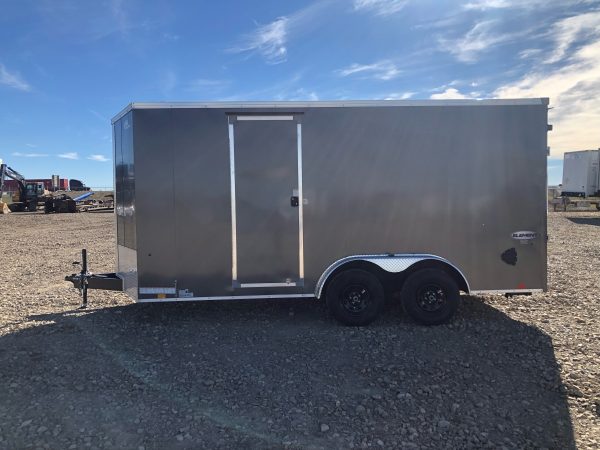

32” x 78” Side Door with Flushlock, Roadside
24” Aluminum Tread Plate Stoneguard Protection: Protects the front aluminum panels from rock chips or any other debris that could damage your front aluminum panels.
Automotive Undercoating
24” Moisture Barrier: Tyvek Moisture Barrier (Used in house construction) is placed between the steel structure and the aluminum exterior to prevent corrosion
One Piece Aluminum Roof: provides a leak free smooth exterior finish. No seams= no water = no maintenance

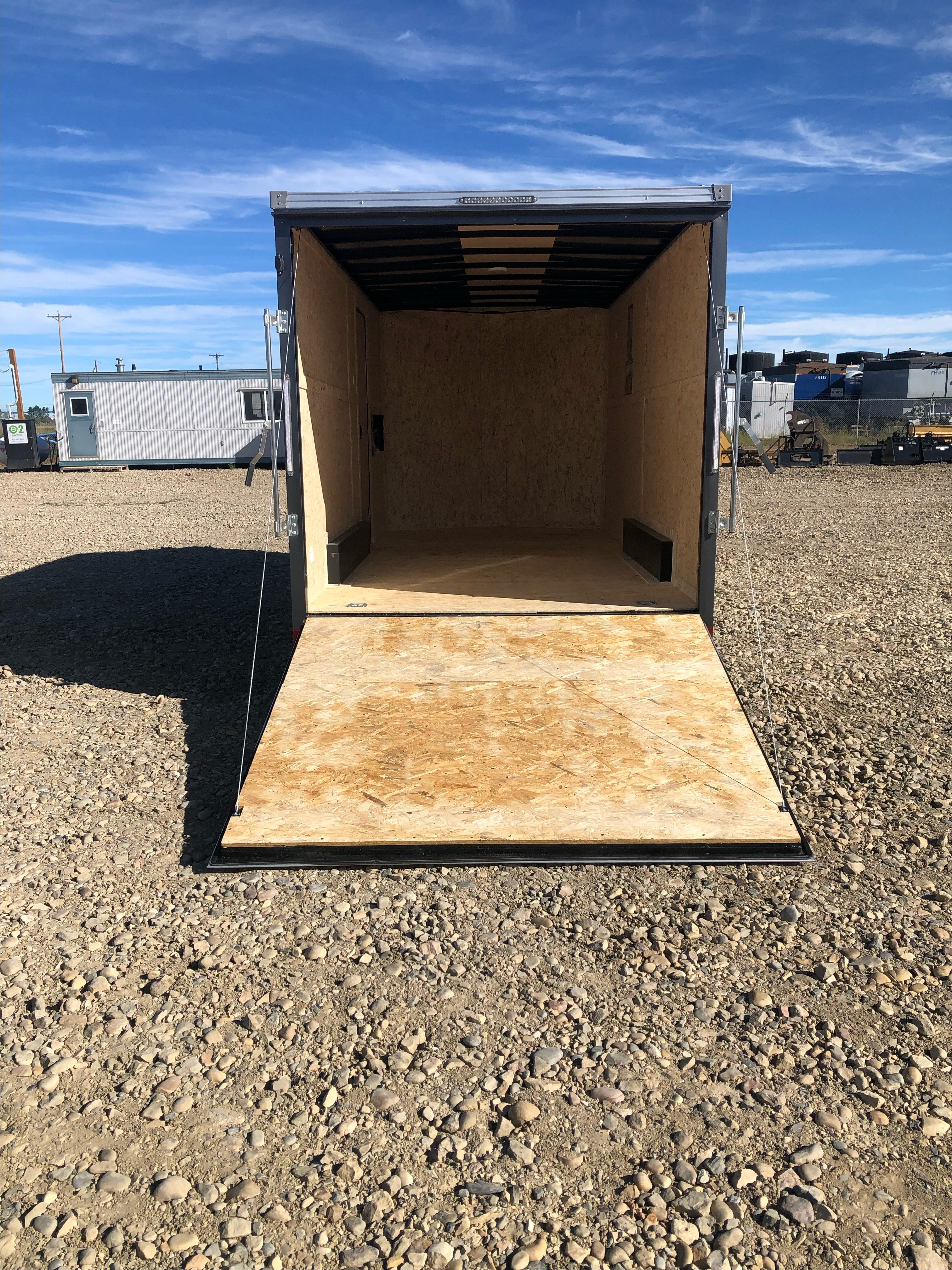

Heavy Duty Rear Ramp Door w/Spring assist, 12” x 3/4” Ramp Extension
LED Tail Lights & LED Clearance Lights: LED Lights use less power from the tow vehicle, are brighter and more dependable.
(4) Floor Mount 5000# Recessed D Ring with Steel Plates bolted in Four Corners
(2) Sidewall Vents
(1) LED Dome Light w/wall switch
3/4” High Performance DryMax Floor: Moisture resistant throughout the panel, not just the surface. Performs better in moisture resistance testing than plywood.
3/8” High Performance DryMax Walls: Moisture Resistant!
16’ Interior Length + 24” Vnose
84” Interior Width
7ft Interior Height
6.5ft Rear Door Opening Height
Towing Features:
(2) 3500# Lippert Spring Axle: 6 Year Warranty, industry leading!
7000# GVWR
2670# Trailer Weight
4339# Payload
EZ-Lube Hubs
Electric Brakes on both axles
2 5/16” Coupler
Safety Chains
2000# Tongue Jack w/Sand Pad
7-Way Plug
ST205/75/R15: 15” E-Coated Black Rims with Radial Tires: Radial tires run cooler which leads to a longer life span especially when the tires are used at full capacity.
